Applications of Vigor Sensors in Wind Turbine Installation and Health Monitoring
Case Application by Vigor Technology
Brief Overview
As a clean and renewable energy source, wind energy is receiving more and more attention. In recent years, wind power technology has been greatly promoted and developed.
With the development of wind power, increasing wind field accidents happened, each accident has caused huge losses to relevant companies and owners.
Therefore, the monitoring, data collection and analysis of wind farm operation and maintenance are particularly important.
Application of Vigor's Sensors in Wind Turbine Installation and Monitoring
Vigor Technology has been focusing on the field of attitude measurement for more than ten years and has rich engineering experience and product lines.
In the aspect of fan monitoring, we provide professional and comprehensive products to meet various long-term, reliable and accurate monitoring requirements.

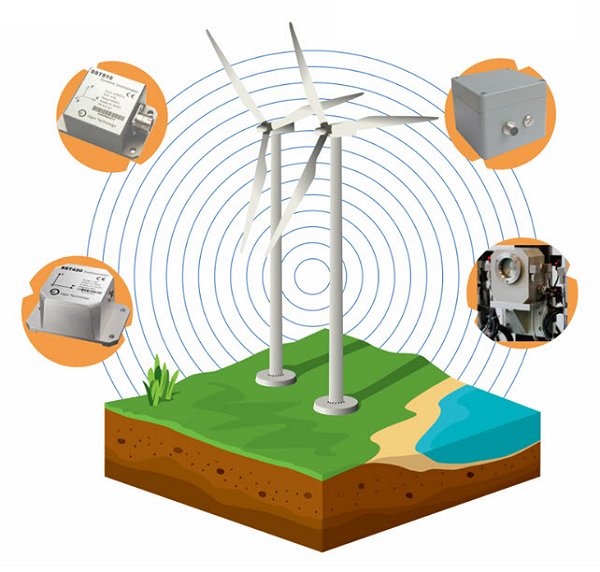

Image 1 - Multiple Sensors for Monitoring Wind Turbine Health.
In the wind turbine applications, Vigor Technology products can be widely used in multiple aspects:
1). Collision monitoring and tilt monitoring during the transportation of large components of wind turbines. (Signal remote transmission and car display coexist);
2). Location of the transport vehicle, rollover pre-alarm system. (Signal remote transmission and car display coexist);
3). Initial orientation alignment solution for wind turbine installation. (relative position, absolute position);
4). Large components lifting, single crane work process monitoring, double crane working process coordinated monitoring. (Within site security handheld display, car display, sound and light alarm);
5). Long - term monitoring of tower base inclination. (The change of absolute tilt and relative tilt);
6). Long - term monitoring of tower base settlement;
7). Tower under flange, tower top torsion angle monitoring;
8). Blade root torsion angle monitoring, tip swing distance monitoring;
9). Tower top swing angle and displacement monitoring;
10). Tower chamber gear box, low speed shaft, generator back cover, generator front cover, spindle vibration monitoring;
11). Other customized monitoring.

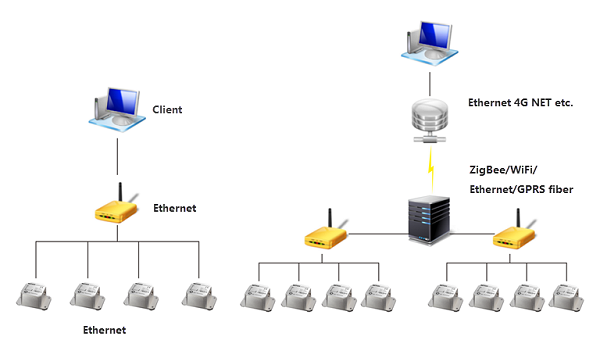

Image 2 - Wired Monitoring Network.
Application Details
1. Application of Vigor Products in Wind Turbine Component Transportation
Wind tower components are bulky, weight and material damage zero tolerance, moreover, wind field is built in the no man's land, and there is no solid, stable and smooth road for
transportation. Therefore, it is extremely important to monitor the attitude and location of the transportation vehicle as well as the security of the large components being transported.

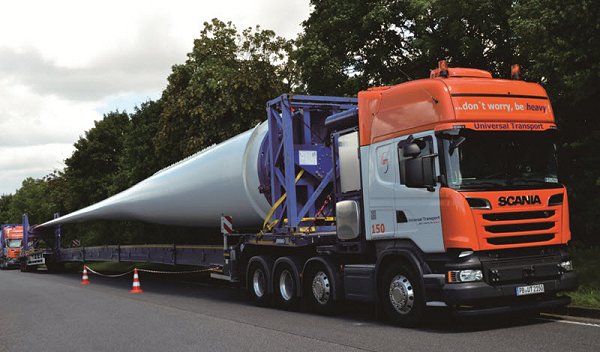

Image 3 - Fan Blade Transport.
Vigor Technology provides low-cost vehicle monitoring system, including vibration monitoring, angle monitoring, position monitoring, rollover warning, other sensors and equipment.
2. Application of Vigor Products in Fan Hoisting Process
During the hoisting process of the fan, a crane is used to hoist the tower, cabin and blades. Moreover, the installation site is a carefully selected place with sufficient wind energy.
Therefore, the swing of large components will increase the difficult of installation and delay the construction time.

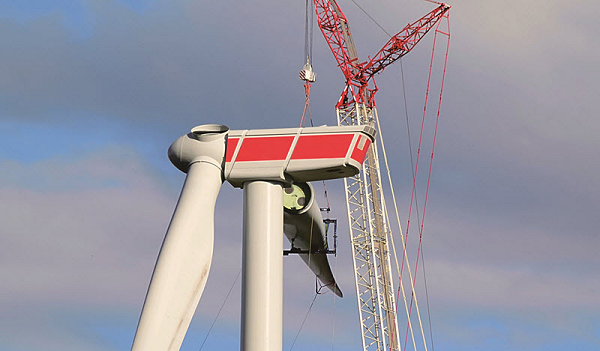

Image 4 - Fan Large Component Lifting.
Combing our own technical advantages, product advantages and years of project experience in the field of engineering machinery, Vigor Technology proposes a wireless attitude monitoring
system (applicable to single cranes and double cranes) during the lifting process of wind turbine's large components, which makes it convenient for crane driver to observe the attitude
of the lifted components in real time, and also facilitates the on-site commander to command on site.
3. Initial Orientation Alignment Solution for Wind Turbine Installation
After the fan has been installed, initial orientation alignment is required, due to the enclosed design of the cabin and the height limitation of the fan, the initial azimuth alignment
becomes difficult and there is no very convenient and effective solution at present. Based on years of attitude measurement technology and engineering experience, Vigor Technology proposes
a non-contact long-distance alignment scheme that can effectively solve the initial orientation problem of the cabin.
4. Tower Base Inclination and Settlement Monitoring
In the operation and maintenance process of the wind field, since the wind farm construction area is mostly an environment with poor natural conditions, the tilting and settlement
monitoring of wind towers' concrete foundation is extremely important. Combing with years of engineering experience in the civil engineering industry, Vigor Technology provides stable
and reliable sensors to monitor the inclination and settlement of concrete foundations.
When the fan is blown to generate electricity, the blades, cabin, tower top and the flange below the tower have different degrees of torsion. Once the twisting pendulum is out of the
design range or safety range, it will be shut down for maintenance, even sometimes, it will cause huge irreparable damage.

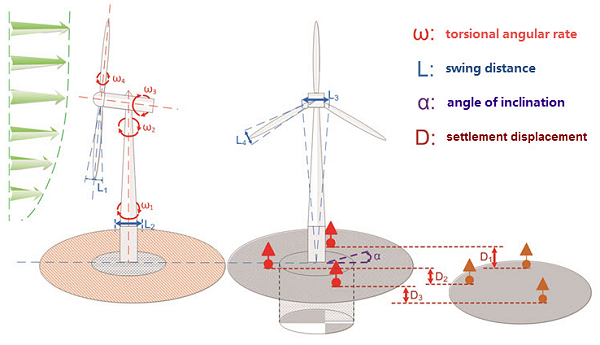

Image 5 - Twisting Angle Speed Diagram of the Fan.
Vigor Technology provides complete solution and a wide range
of products for solving the twist angle, angular velocity and displacement problems.
6. Vibration Monitoring of Mechanical Parts in Cabins
The vibration monitoring of alternator's rear cover, front cover, low speed shaft and main shaft of the cabin is directly related to the life of the rotating parts and the operation
safety of the whole fan, it will be necessary to monitor the vibration of those parts.

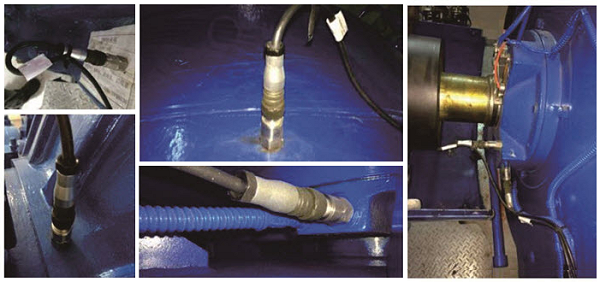

Image 6 - The Vibration Points in the Fan.
The Sensors Used for Wind Turbine Installation and Health Monitoring
Sensors
Measurement Principle
Application
Measurable Physical Quantity
inclination
MEMS
static
static inclination
inclination
inertial
dynamic
static and dynamic angle, swing angular velocity, swing accelerations
settlement
MEMS, electrolite
static
static settlement angle, settlement displacement
displacement
MEMS
dynamic
displacement of dynamic swing place relative to the center point
